KHS Winslow

KHS Winslow
  • Color: Black
  • Color: Blue
Wheel Size:
Please select options

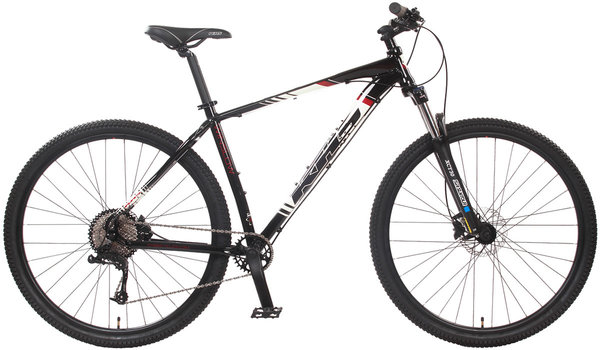

With knobby wheels, a 100mm suspension fork, and a lightweight alloy frame, the Winslow is built to take you off the pavement for thrilling singletrack fun. An S-Ride drivetrain with an 11-42T cassette provides ample gearing to help you up steep trails, and hydraulic disc brakes ensure you have the stopping power to maintain control on the way back down. This XC mountain bike comes ready to put in some dusty miles with ATB Platform pedals, a KHS sport saddle, and an alloy riser handlebar with sport grips.

Wheel size:
Sizes X-Small (13-inch) – Medium (17-inch): 27.5-inch
Sizes Large (19-inch) – X-Large (21-inch): 29-inch


Frame Alloy 6061 w/ Custom Formed TT & DT, w/ Replaceable Derailleur Hanger, XS-M: 27.5", L-XL: 29"
Fork SR XCT30, HLO. 100mm, Hydraulic Lock-out, Preload Adjust, XS-M: 27.5", L-XL: 29"
Headset Threadless Zero Stack, 1-1/8''
Rims/Wheels XS-M: Alloy Disc Double Wall
Hubs Alloy Disc w/ CNC Rotor Flange, QR, Alloy Disc w/ CNC Rotor Flange, QR, Cassette
Spokes 14G Black 32 x 32
Tires Knobby, XS-M: 27.5 x 2.1, L-XL: 29x2.1
Crankset Samox Forged, Narrow/Wide C/R
Chainrings 30T
Bottom Bracket Cartridge Bearing
Chain KMC X9 w/MissingLink
Rear Derailleur S-Ride RD-M300C, 9-Speed
Cassette/Rear Cogs S-Ride CS-M300C 11-42T, 9-Speed
Shifters S-Ride SL-M300C, 9-Speed
Handlebars KHS Alloy Riser, 31.8
Tape/Grips KHS Sport
Stem Alloy Threadless 4-bolt, 6-degree, 31.8
Brake Levers Shimano MT200
Brakes Shimano MT200 Hydraulic Disc, 160/160mm=27.5", 180/160mm=29" Rotors, Wave 12
Pedals Resin ATB Platform w/DU Bearings
Saddle KHS Sport
Seat Post Alloy Micro-adjust, 31.6x350mm

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Blue / 21-inch / 29-inch 756928907760 901599008 11059
